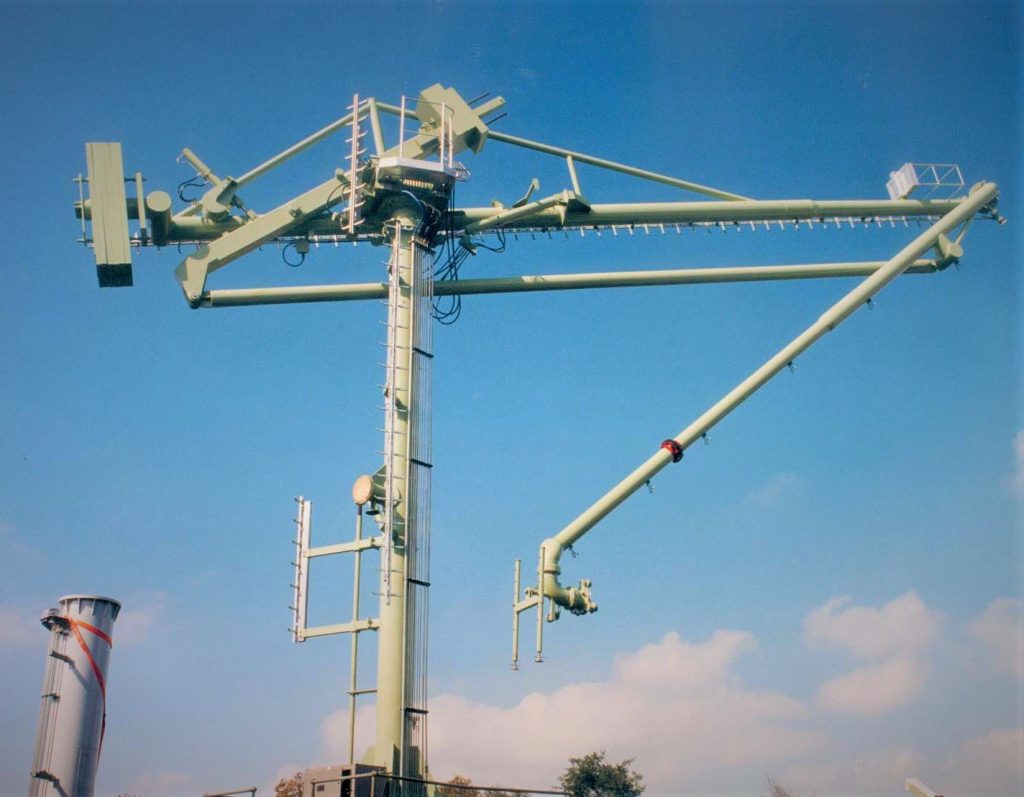

The Woodfield Osprey double counterweighted marine loading arm designed around the latest requirements of OCIMF (Design and Construction Specification for Marine Loading Arms), uses a rigid pantograph link system for accurate balance, smooth operation and minimal maintenance.

The Osprey can be either manually or hydraulically operated using lever hydraulic, trailing lead or radio pendant’s.

If the manual version is selected, brackets can be fitted for upgrade to hydraulic operation at a later date. The Osprey is available in sizes from 6” to 20” diameter with pressure ratings up to 300lbs and operating temperatures from -50OC to +200OC.

The following features can be added to this style of marine loading arm

  • Manual or hydraulic quick connect disconnect coupler (QC/DC)
  • Triple Swivel Support jack
  • Ladders and platforms
  • Remote lubrication
  • Range alarm
  • Nitrogen purge
  • Vapour recovery
  • Heat tracing/Insulation
  • Constant position monitoring
  • Product Stripping system
  • Mobile trailer mounted
