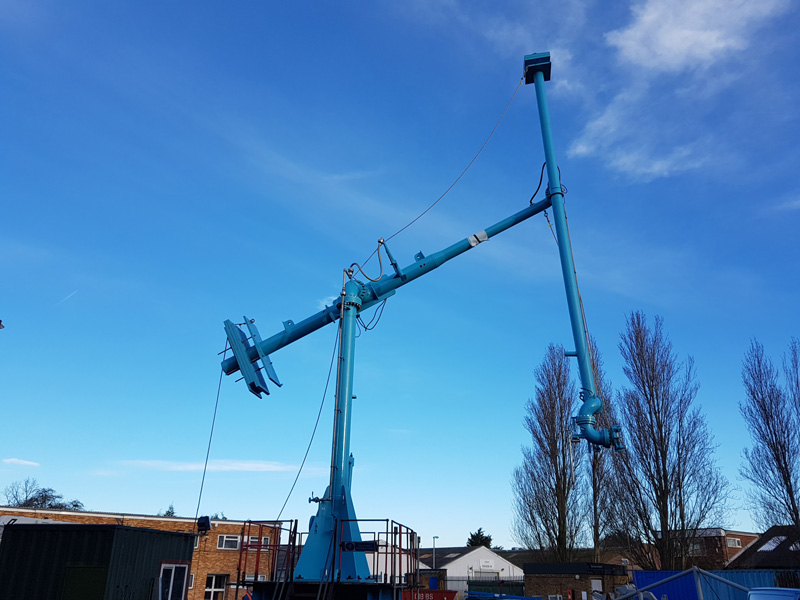

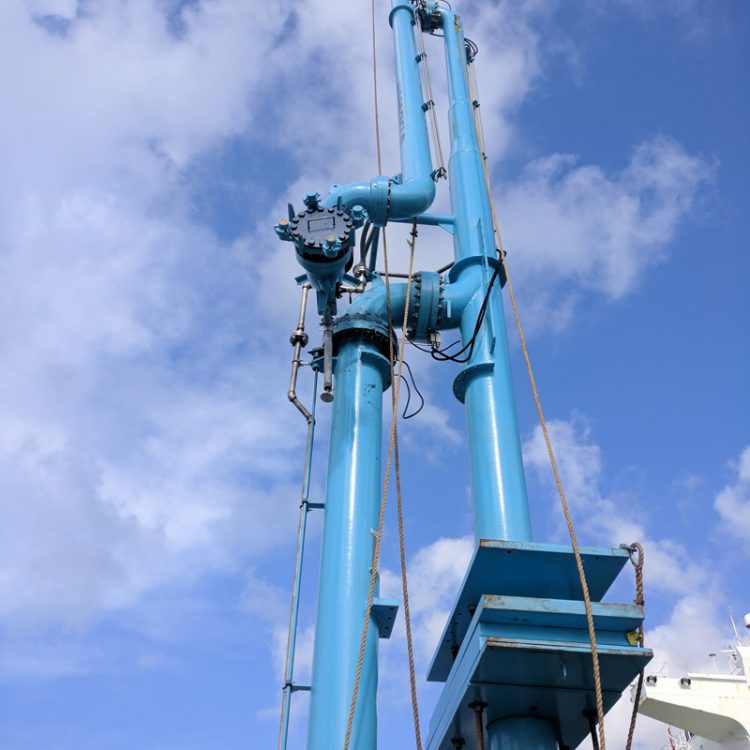

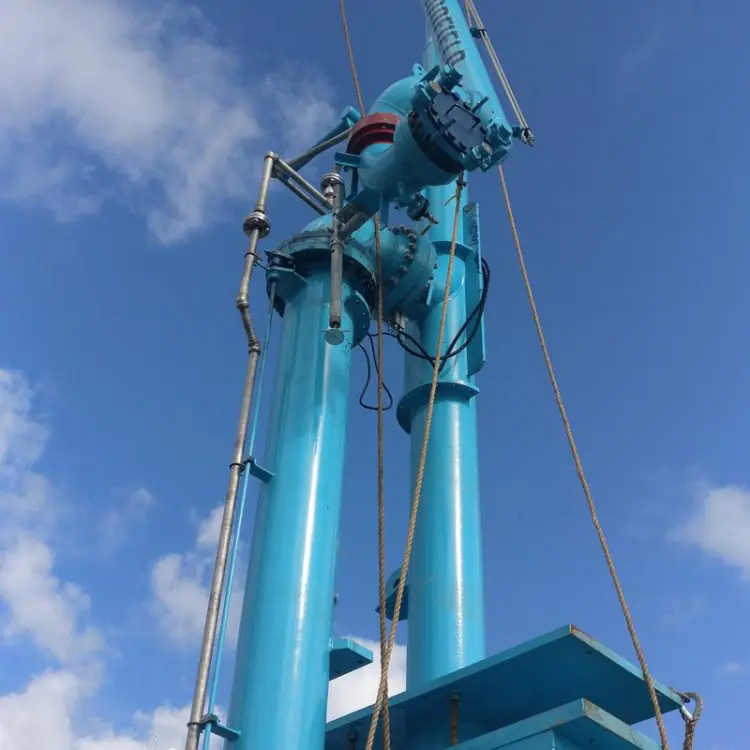

The Woodfield Apex Counter Weight marine loading arm designed around the latest requirements of OCIMF (Design and Construction Specification for Marine Loading Arms) is manually operated to give easy operation via ropes that enable the operator to connect the marine loading arm to the ship.

This style of marine loading arm is ideal where the client either requires a simple low cost solution or has no power available for a control system.

The Fulmar is available in sizes from 4” to 12” diameter with pressure ratings up to 300lbs and operating temperatures from -50OC to +200OC.

The following features can be added to this style of marine loading arm

  • Manual quick connect disconnect coupler (QC/DC)
  • Triple Swivel Support jack
  • Ladders and access step
  • Remote lubrication
  • Range alarm
  • Nitrogen purge
  • Product Stripping system
  • Mobile trailer mounted
